Do you have final pics?

I don’t have anything finished per se. Right now, my R2 build consists of is a set of drives, ankles and some greebies. The center ankle will probably be my first finished part.

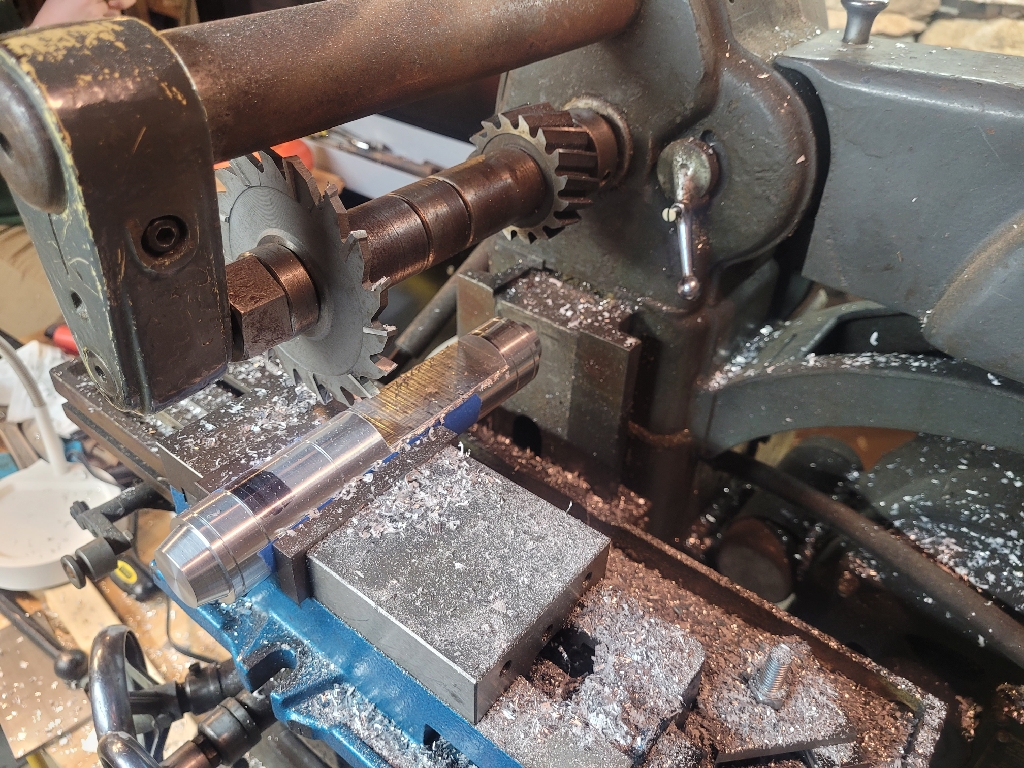

I started work on the ankle cylinders. The outer profiles are turned for all four of the cylinders and the centers have been milled out on two of them. I still need to drill and tap the mounting holes and mill the flats on the ends.


I’m following the CS-L specs for these. The difference between the CS-R and CS-L cylinders is very minimal. Some of the features are slightly easier for me to make following the CS-L dimensions. No one is ever going to be able to tell the difference anyway.
